AC-DC LED Driver
Model: LD150H48T350T700X (150W)  [download brochure]
It is high efficiency AC-to-DC converter with power factor correction topology and better-regulated output to achieve high quality of light. It is designed for high-brightness LED package and LED array. High resolution and Independent control of each channel can generate wide ranges of light /colour spectrum. Output over-current and output short-circuit protections to ensure reliability and long life span. The application ranges from decorative lighting, automotive interior lighting, architectural lighting, scenery effect and many more.
|
Features
True current regulated drivers.
AC input.
Power factor correction
350mA & 700mA constant current output.
High efficiency
High reliability
Long life span
High resolution
Outstanding resolution of colour rending
Wide ranges of light spectrum
More than 16.7 million of colours
Output over-current & short circuit protections
Comply with DMX512A protocol for dimming control |
Specifications
| Input Specification |
| Input Voltage |
220Vac (Nominal) |
| PFC |
| Power Factor |
>0.9 |
| Output Specification |
| Output Power |
150W |
| Output Channels per LED Driver |
6 output channels
(3 channels with 350mA & 3 channels with 700mA) |
| Output Voltage per Channel |
up to 48V |
| Output Current per Channel |
700mA (up to 46V), with 3 to 12 pieces of 3W LED
in series or 350mA (up to 46V), with 3 to 12 pieces
of 3W LED in series. |
| Environment Specification |
| Operating Ambient Temperature |
-30 ~ +40 degree Celsius |
| Protection |
| OCP, Short Circuit |
| Safety Standard |
| Meet UL, CSA, and CE requirement |

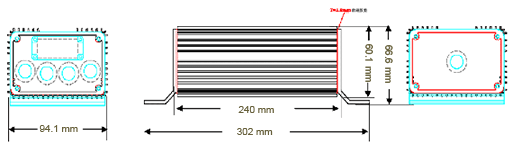

| Mechanical Specification |
| Dimensions |
302 mm (L) x 94.1mm (W) x 66.6mm (H) |
 |
|
|
|
|
