DC-DC LED Driver

Model: LD100D48T700XL(100W)   download LED brochure [download brochure]

DC-DC LED Driver for decorative lighting, automotive interior lighting, architectural lighting, scenery effect

It is an ideal choice for all type of high-brightness LED package and LED array. High efficiency of DC-to-DC converter topology for better regulated output to achieve high quality of light. High resolution and Independent control of each channel can generate wide ranges of light/colour spectrum. Output over-current and short-circuit protections to ensure reliability and long life span. The application ranges from decorative lighting, automotive interior lighting, architectural lighting, scenery effect and many more.


Features
  • True current regulated drivers
  • 700mA constant current output
  • High efficiency
  • High reliability
  • Wide ranges of light spectrum
  • More than 16.7 million of colours
  • Output over-current & short circuit protections
  • Comply with DMX512A protocol for dimming control

  • Specifications
     Input Specification
     Input Voltage  22 ~ 50V dc
     Output Specification
     Output Power  100W
     Output Channels per LED Driver  3 channels
      Efficiency  up to 80%
     Output Voltage per Channel  up to 46V
     Output Current per Channel  700mA (up to 46V), with 3 to 12 pieces of 3W LED in series.
     Environment Specification
     Operating Ambient Temperature  -30 ~ +50 degree Celsius
     Protection
     OCP, Short Circuit
     Mechanical Specification
     Dimensions  289mm (L) x 42mm (W) x 37.5mm (H)

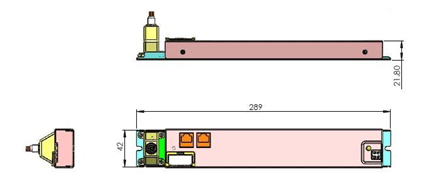

    dimension of DC-DC LED Driver for decorative lighting, automotive interior lighting, architectural lighting, scenery effect
